ULTI Aero Pole-Mounted Triple-Screen Spring-Assisted Monitor Arm | T22

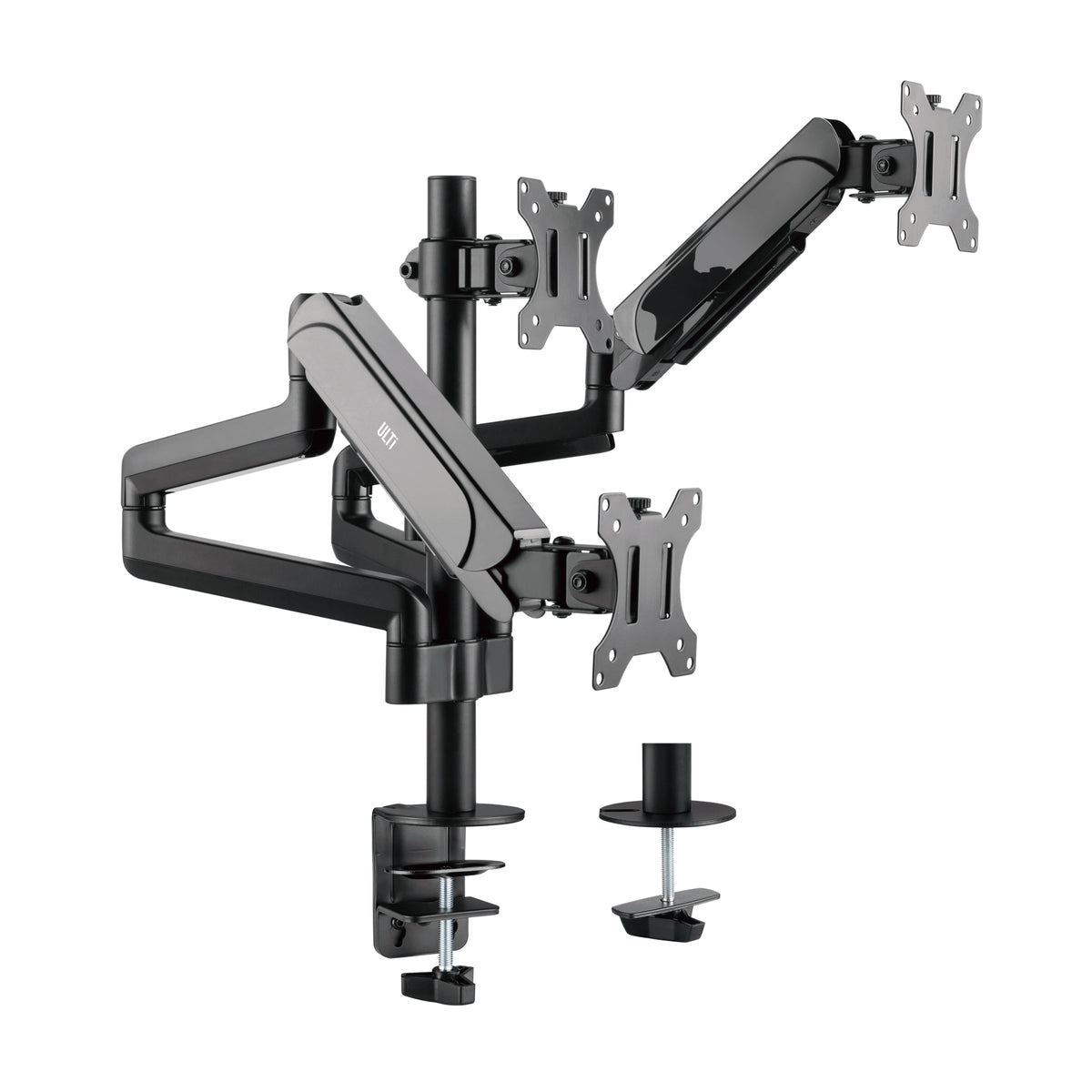

The ULTI Aero T22 is a pole-mounted, mechanical spring-assisted monitor arm for three 17–27-inch flat or curved monitors. Each screen must weigh 1–7 kg and use a 75 × 75 mm or 100 × 100 mm VESA mounting pattern. Supplied in matte black, it lifts your monitors above the desktop to free up workspace.
Available to order
Product overview
The ULTI Aero T22 is a pole-mounted, mechanical spring-assisted monitor arm for three 17–27-inch flat or curved monitors. Each screen must weigh 1–7 kg and use a 75 × 75 mm or 100 × 100 mm VESA mounting pattern. Supplied in matte black, it lifts your monitors above the desktop to free up workspace.

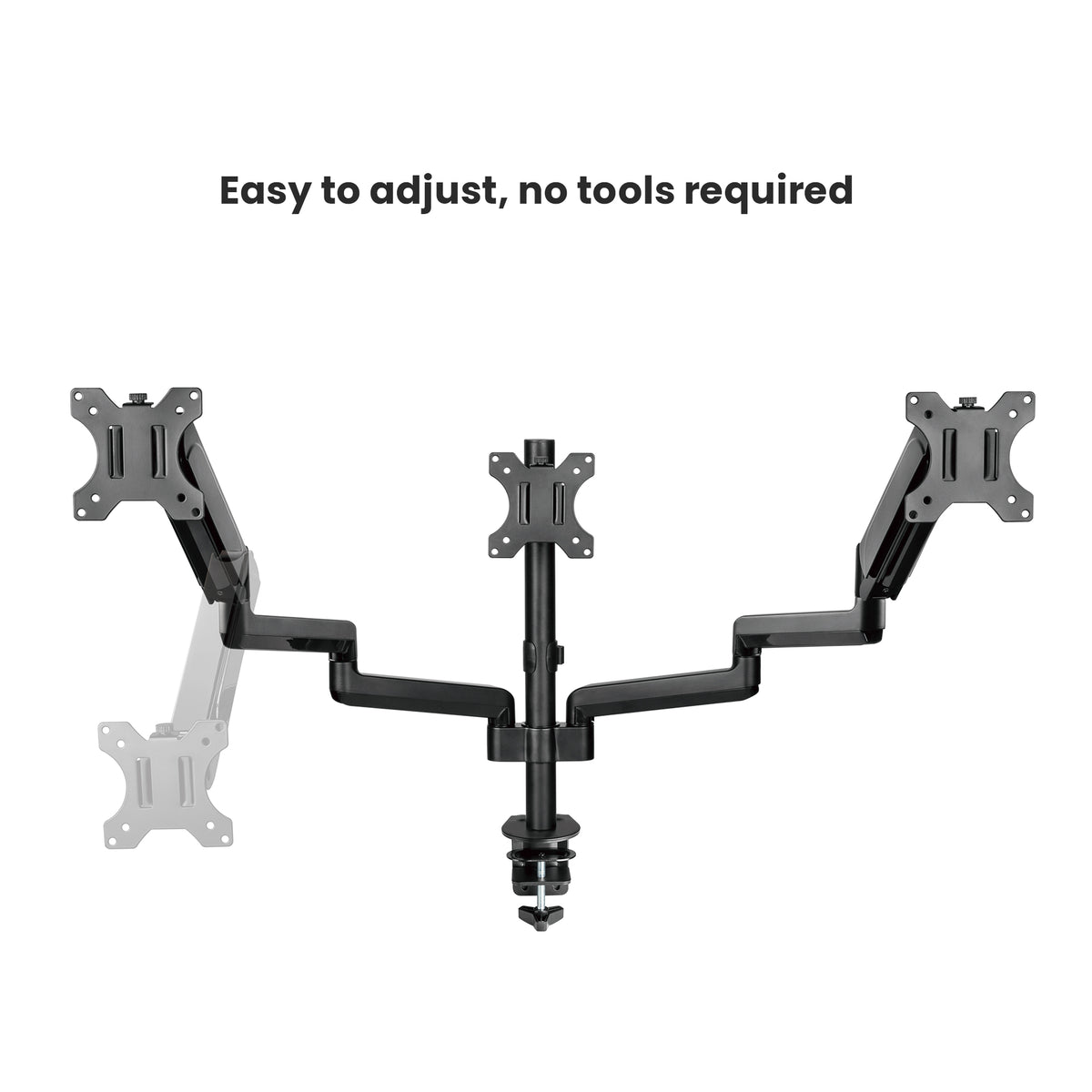

Adjustable screen positioning

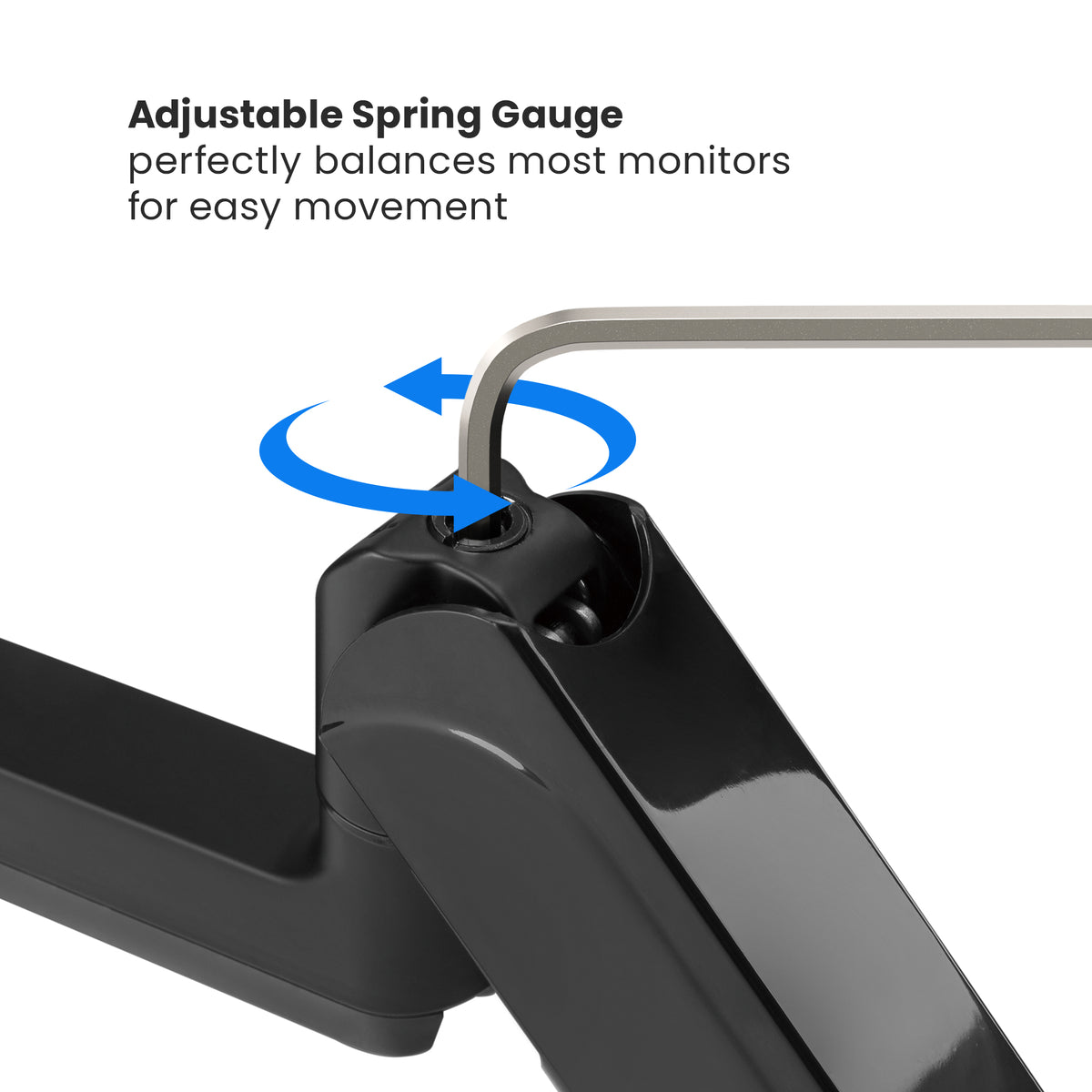

- Mechanical spring assistance: Spring-assisted arms help with raising and lowering your screens. Adjust the spring tension to suit the monitor weight within the 1–7 kg range.
- Tilt and swivel: Adjust the viewing angle with −35° to +35° tilt and −90° to +90° swivel.
- Portrait or landscape: Screen rotation from −180° to +180° supports different screen orientations.
- Pole-mounted design: A 433 mm pole supports the triple-monitor setup, with a maximum arm extension of 703 mm.

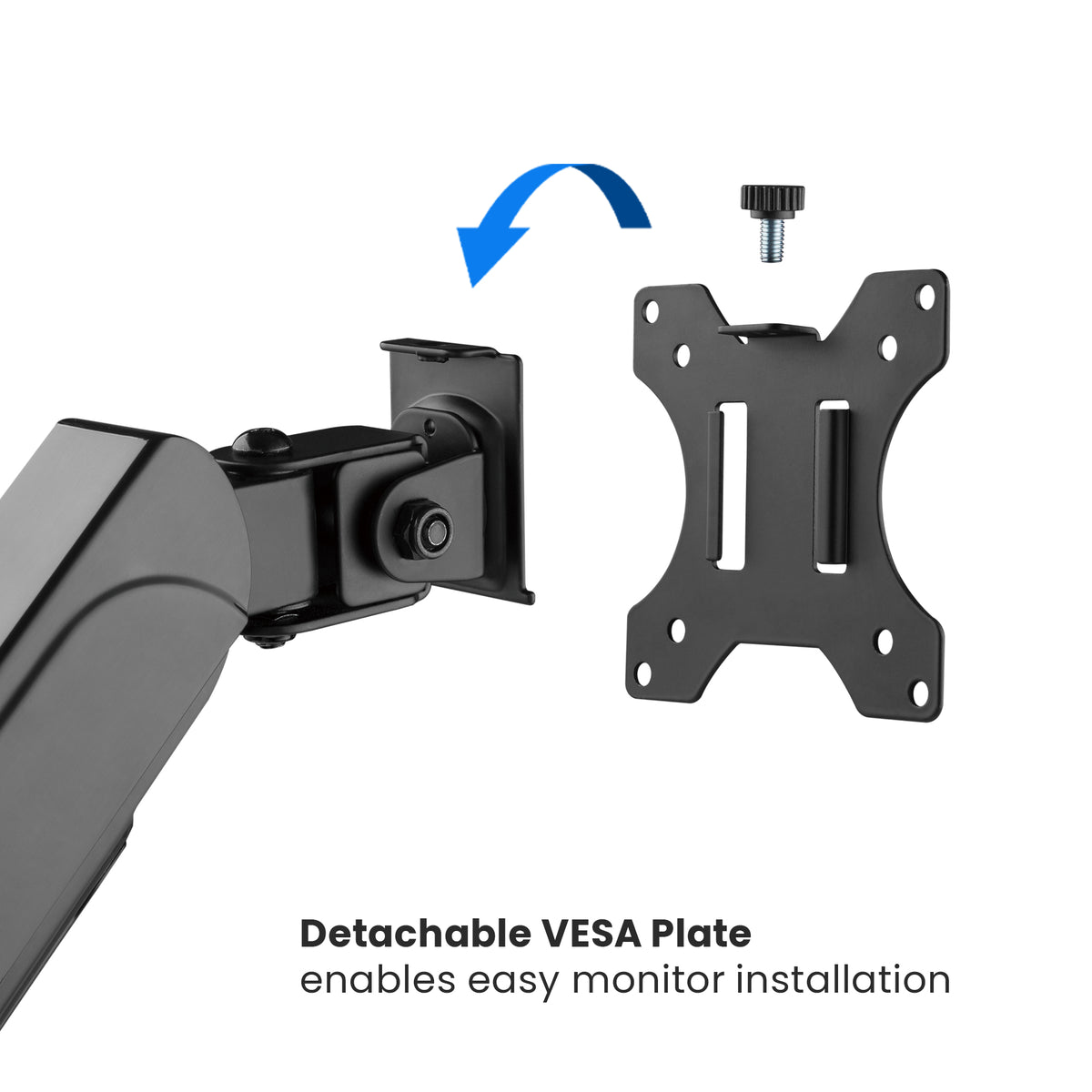

- Quick-release VESA plates: Detachable plates make attaching and removing monitors easier.

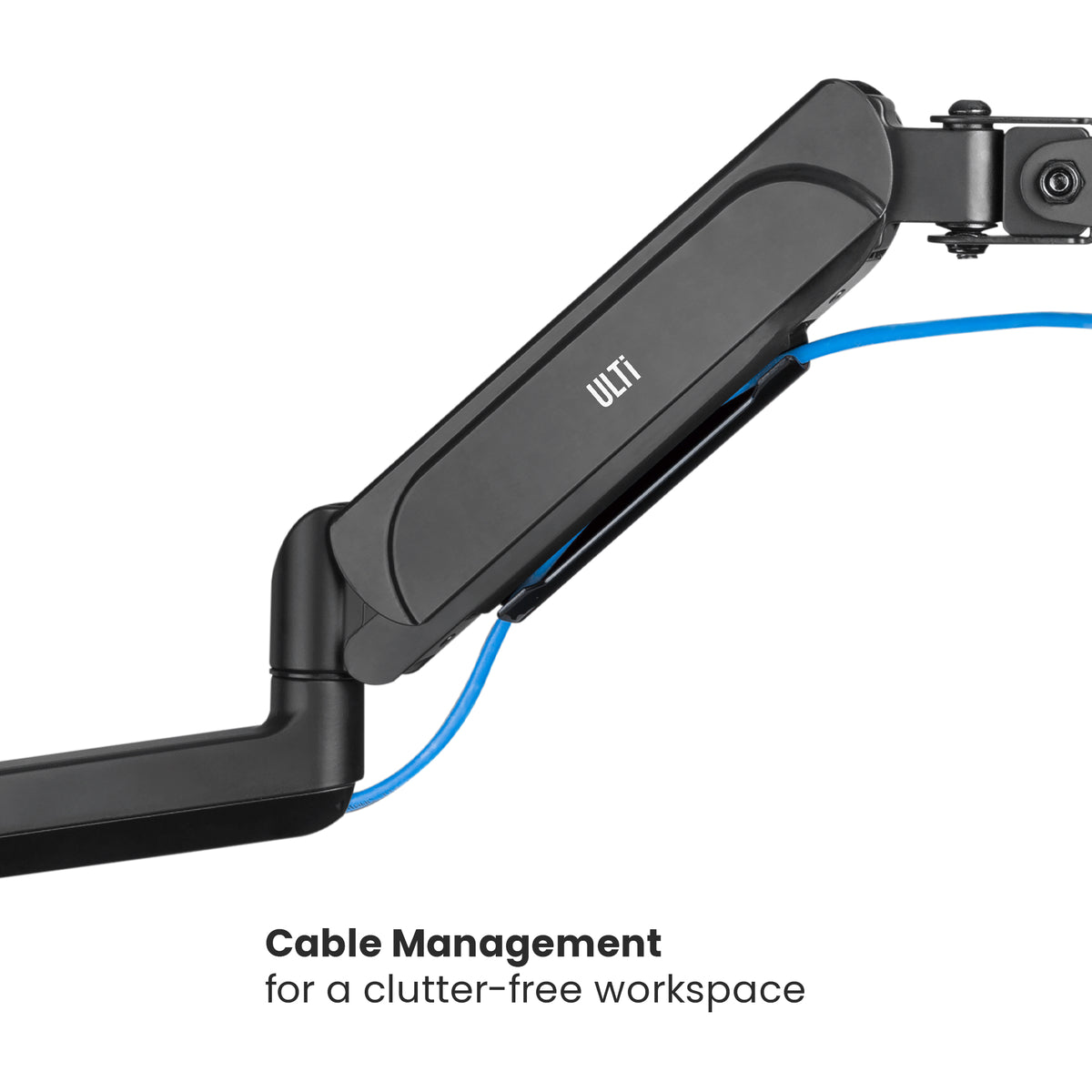

- Cable management: Integrated cable routing helps keep monitor cables organised along the arms.
Monitor and desk compatibility
Check each monitor against all three requirements: 17–27-inch screen size, 1–7 kg weight without its original stand, and a 75 × 75 mm or 100 × 100 mm VESA hole pattern. The weight range applies to each screen. Check the monitors' rear mounting areas, connector clearance and available space for the complete three-screen arrangement.
The T22 supports desk clamp installation on desktops 10–85 mm thick or grommet installation on desktops 10–40 mm thick. Confirm suitable desktop construction, a suitable mounting hole for grommet installation, and clearance above and below the tabletop.
Monitors shown in the images are not included. The arm is supplied in matte black.
A closer look
Technical specifications
| Model | T22 |
|---|---|
| Product type | Pole-mounted triple-screen mechanical spring monitor arm |
| Number of screens | 3 |
| Screen size | 17–27 inches per screen |
| Monitor type | Flat or curved |
| Weight capacity | 1–7 kg (2.2–15.4 lb) per screen |
| VESA mounting patterns | 75 × 75 mm and 100 × 100 mm |
| Tilt adjustment | −35° to +35° |
| Swivel adjustment | −90° to +90° |
| Screen rotation | −180° to +180° |
| Maximum arm extension | 703 mm (27.7 inches) |
| Pole height | 433 mm (17 inches) |
| Overall dimensions | 1418 × 161 × 564 mm |
| Installation methods | Desk clamp or grommet |
| Desktop thickness — clamp | 10–85 mm |
| Desktop thickness — grommet | 10–40 mm |
| Quick-release VESA plates | Yes |
| Cable management | Yes |
| Material | Steel, aluminium and plastic |
| Surface finish | Powder coating |
| Colour | Matte black |
| USB port | No |
| Multimedia port | No |
- Brand
- ULTI
- Product category
- Monitor Arms
- Available market
- Singapore
- Configuration
- Triple
- Capacity
- Up to 7kg per arm
Monitor compatibility
Screen size alone doesn't tell you if a monitor arm will fit. Check all of these against your monitor before ordering.
- Screen setup
- 3 monitors, 17–27 inches each
- Bare-weight capacity
- 1–7 kg per screen
- VESA pattern
- 75 × 75 / 100 × 100 mm; quick-release VESA plates
- Mounting
- Clamp: 10–85 mm desktop thickness; grommet: 10–40 mm desktop thickness
Confirm bare monitor weight, VESA pattern, desk thickness and clearance below the tabletop. Curved and ultrawide screens also need a geometry check, not just a screen-size match.
